Pick The Right Propeller for Your Boat

What to look for in a propeller to maximize your boat's performance.
propeller for fishing boat

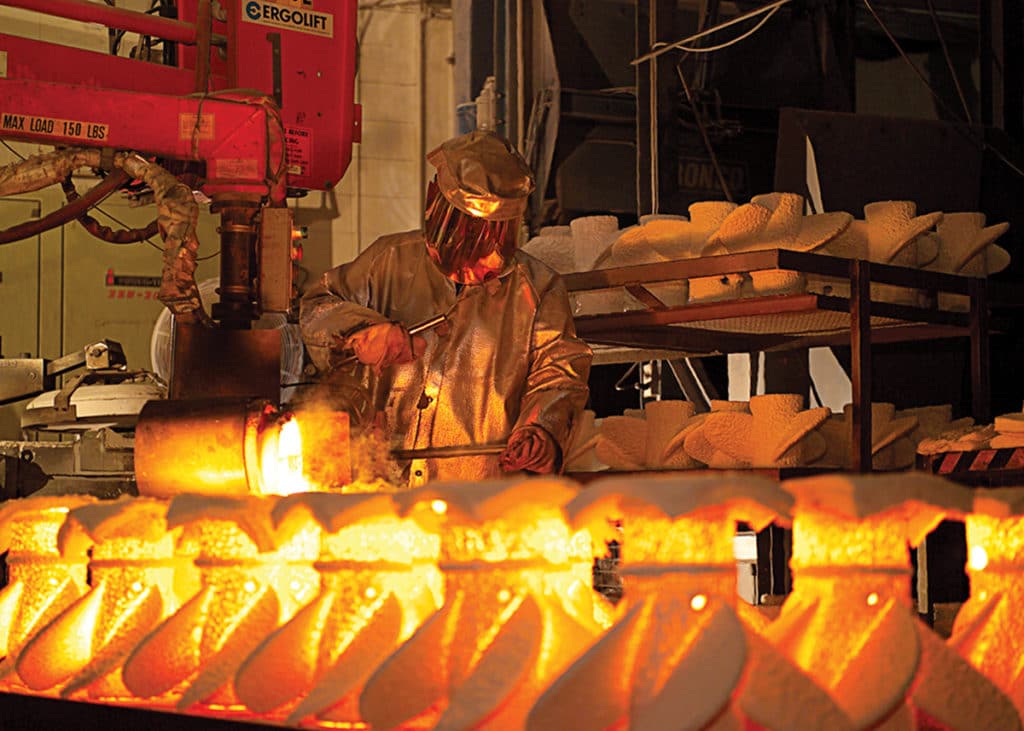

Modern casting techniques allow precise detailing in propeller manufacture. Courtesy Mercury Marine

Choosing the right outboard propeller can be perplexing, but it doesn’t have to be. In propeller designation, diameter is the first number listed, followed by pitch. Diameter is measured across the outer circle of the blade tips, while pitch is the distance a prop theoretically moves forward in a single revolution. So, a 15x17x3 designation ­indicates a 15-inch diameter and 17-inch pitch with three blades.

“There is no perfect propeller that does it all,” says David Meeler, Yamaha Outboards propeller information manager. “There are too many variables in boat design, and performance. Each propeller is a compromise. You have to give up a little of one aspect, such as top speed, to get more of another, like acceleration.”

Three-bladed propellers

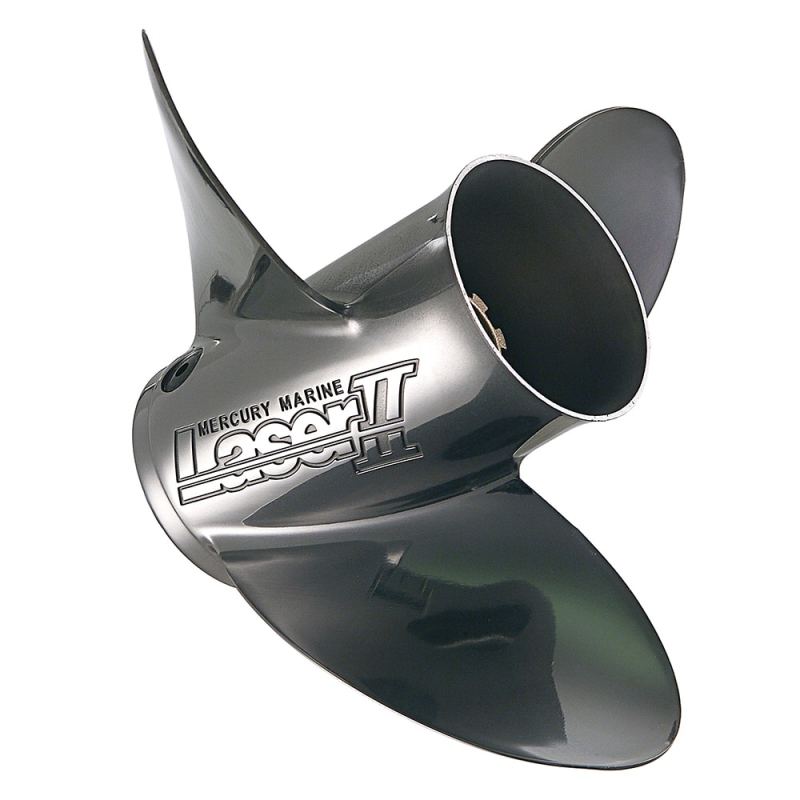

Three Blades: Three-bladed props, the most common configuration, are the most efficient. They spin up faster and produce less drag. File Photo
four-blade propellers

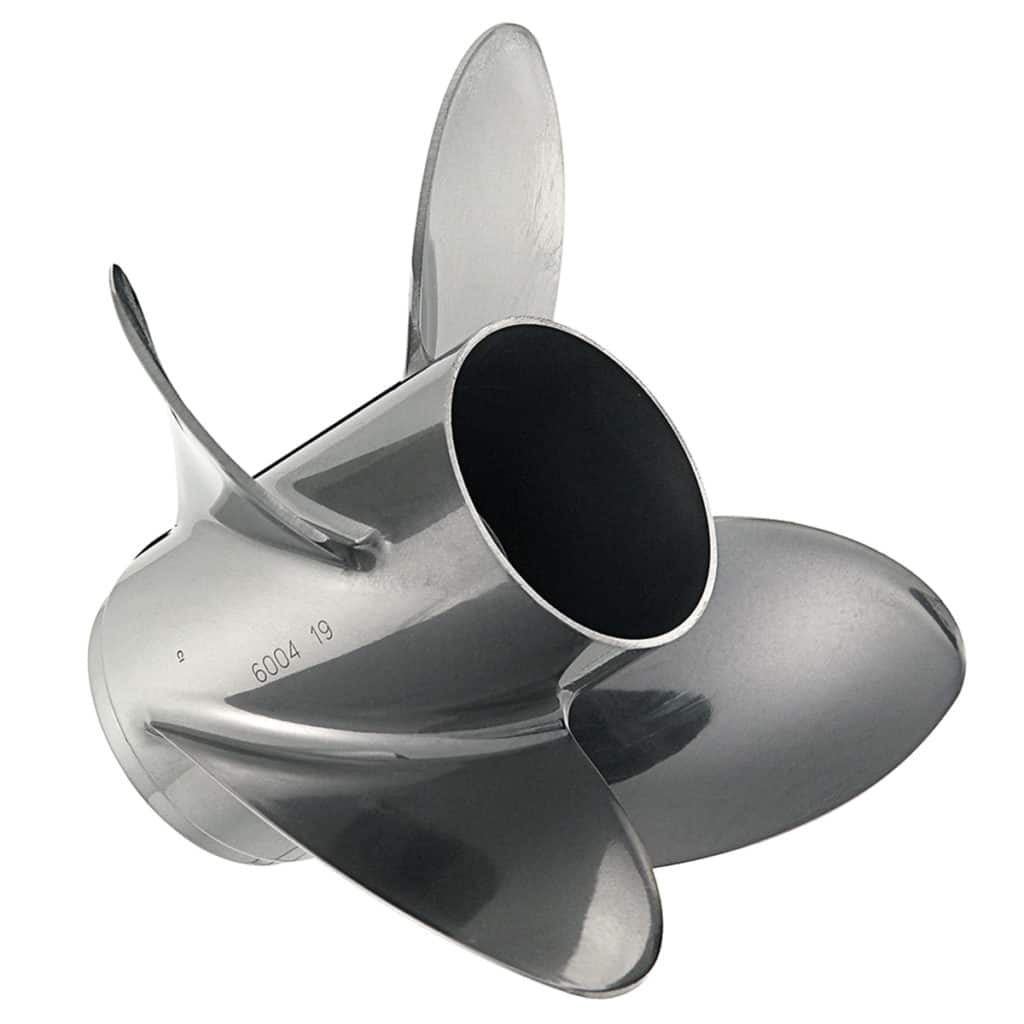

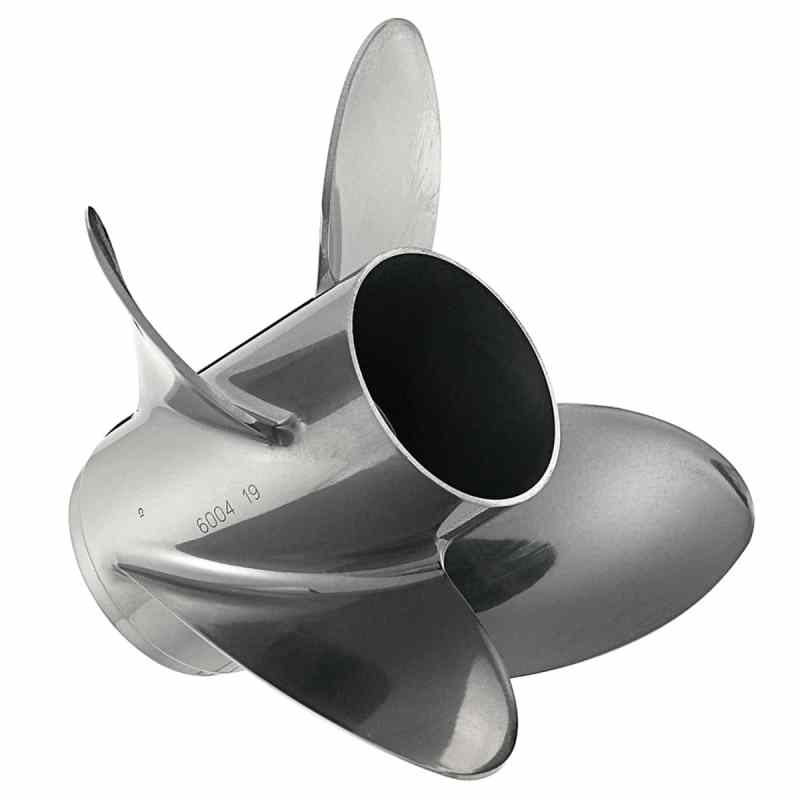

Four Blades: Four blades aid initial acceleration and stern lift, advantageous for flats boats in skinny water or the center engine in a triple setup. File Photo
five-blade propellers

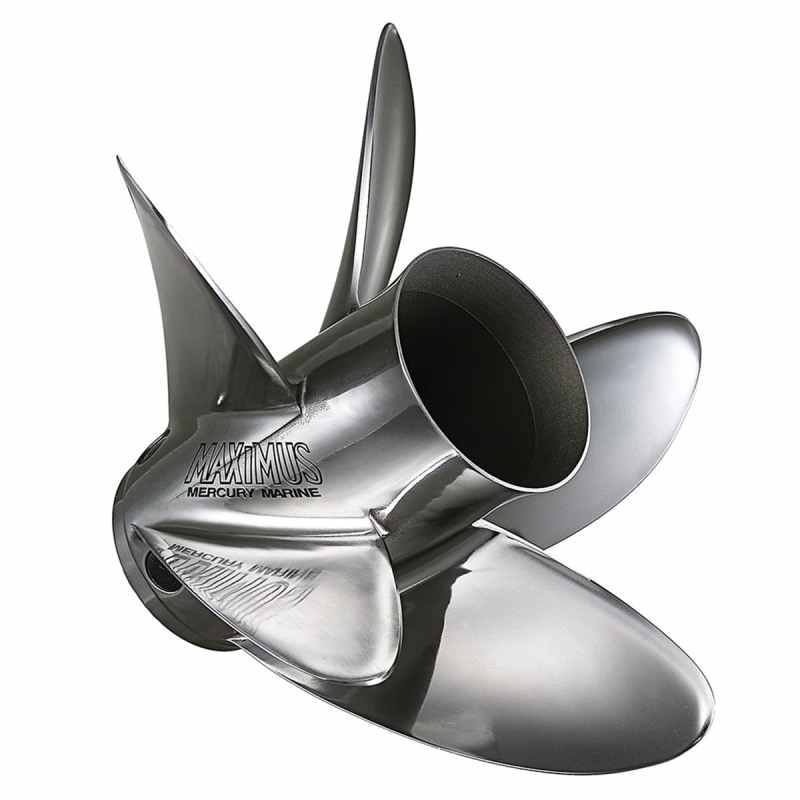

Five Blades: Five-bladed props are top performers in rough conditions or when torque and acceleration are priorities. File Photo

According to Meeler, the focus is on pitch. One inch of pitch equals approximately 150 to 200 rpm at wide-open throttle. Outboards have a recommended WOT and the right prop keeps the engine in that sweet spot. The wrong propeller causes the engine to labor or over-rev, shortening its life and decreasing performance. For nearly all Yamaha four-strokes, ideal WOT is 5,700 to 6,000 rpm, Meeler says. So if your boat is currently revving to only 5,400 rpm, subtracting 2 inches of pitch should put it in ideal operating range.

Advertisement

“Diameter can have as much impact as pitch,” Meeler explains. “All things being equal, one-quarter inch in diameter equals the same 150 rpm change ­associated with pitch. That’s because of blade surface area. A larger diameter increases the blade surface, which contacts more water. But it’s also more difficult for the engine to move the prop as diameter increases. That’s why in a family of propellers as the pitch increases, diameter generally decreases.”

A propeller only performs when water is on the blade. So consider the shape, angle and number of blades. Meeler uses the image of a two-by-four to illustrate the concept of rake. Sliding the board through the water skinny side first is easy. But trying to push it through on the flat side is much more difficult. Having a lot of rake is similar to pushing against the flat side of the board. Conversely, the quicker the engine spins up (the less the rake), the faster the boat moves through the water.

propeller for fishing boat

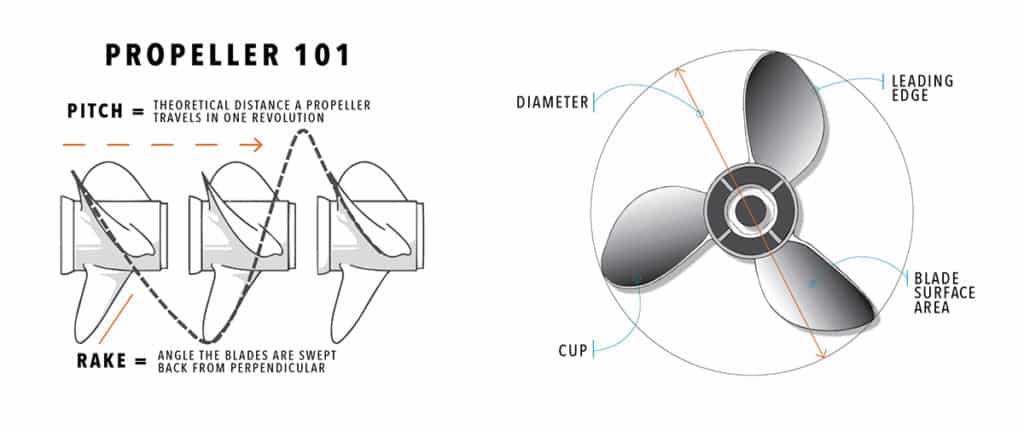

Imperfect Art: Pitch is the primary index of performance. This is the distance a propeller travels forward through one complete ­revolution, but it is strictly a theoretical ­measurement that does not account for real-world factors such as slip. More rake yields a higher pitch. File Photo

Cup, the curling or bending of the blade tips, will also impact performance because shape influences how water comes off the blade. Cupping can add grip and enhance bow rise, but too much can add drag. With cup, like rake, a happy medium is usually the best combination.

Advertisement

The total number of propeller blades will also impact overall performance and top speed. Fewer blades are more efficient. Again, the choice must be balanced against the performance objectives, boat design and normal use.

Consult engine performance bulletins for your boat model and dealer recommendations before making a final propeller decision. If necessary, have a prop shop fine-tune them some more after extensive testing under normal loads and conditions. And remember: Dialing in a propeller is an art, not an exact science.
